Mapping in SPOTLIGHT

There are several mapping capabilities in SPOTLIGHT. You can create a map from previously created areas within the My Areas page or opt to map variables thematically within the Mapping page. The mapping interface allows you to customize and format your map, utilizing several advanced mapping options.

Inputs Required:

There are two sections to this article:

  1. Creating a Map
  2. The Mapping Toolbar in SPOTLIGHT

________________________________________________________________________________________________________________

Creating a Map

1. Begin by selecting Mapping.

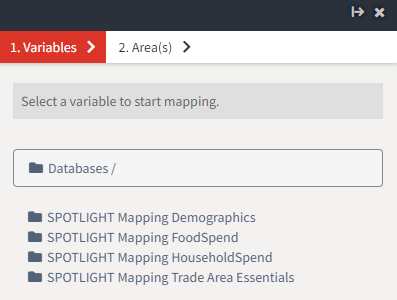

2. Select a database to start mapping.

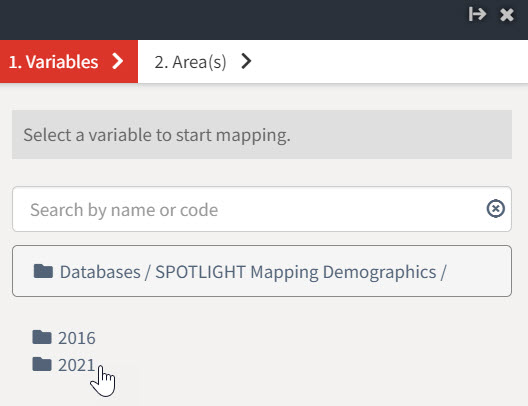

3. Select a category within the chosen database.

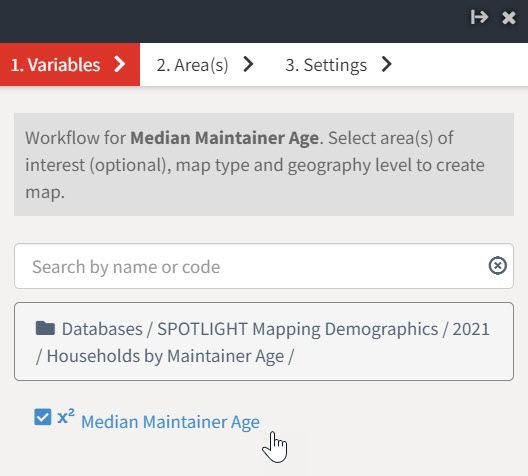

4. Select a variable to map.


Click Next.

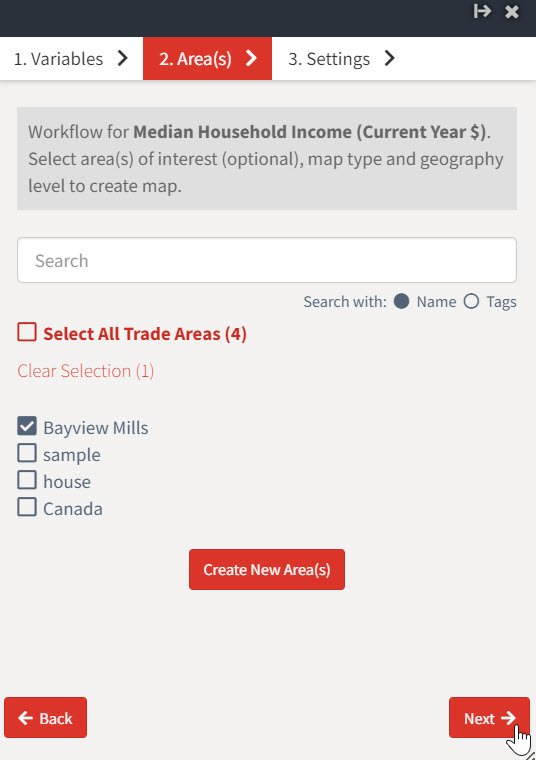

5. A mapping workflow has now been created for the variable. Select the Trade Area(s) to map the variable. If the Trade Area is not present, explore Creating Areas in SPOTLIGHT to create new Trade Areas.


Click Next.

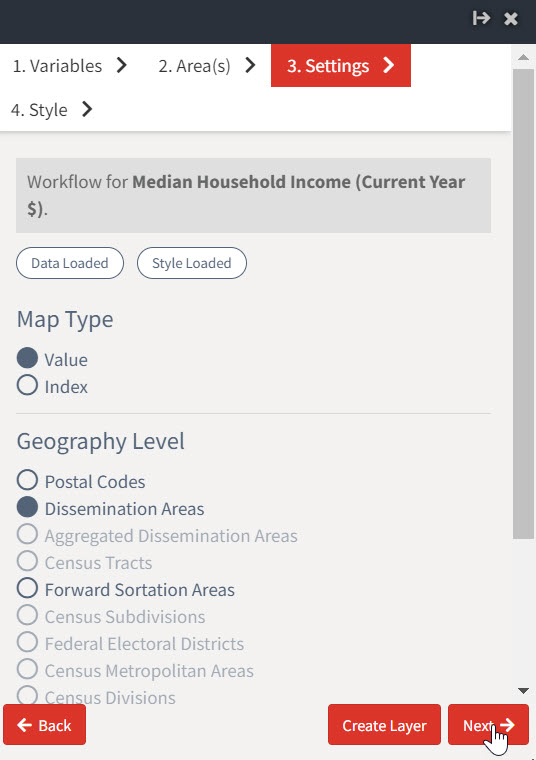

6. Select the Map Type and Geographic Level to create the map. Click Create Layer and wait for the data layer to load. Then click Next.

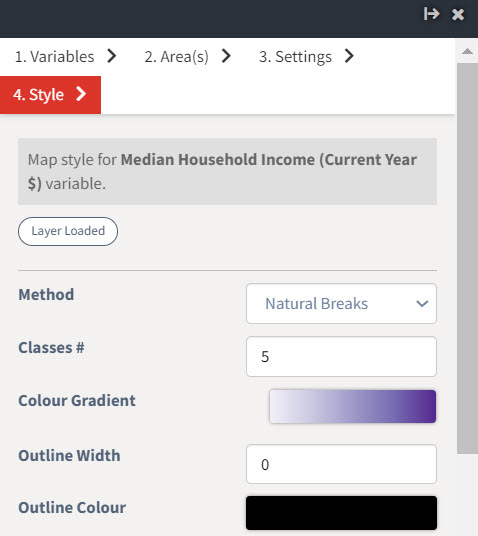

7. Style your map by changing the Method, Classes #, Colour Gradient, Outline Width, and Outline Colour. Choose to present the data using a Choropleth or Graduated Circle.

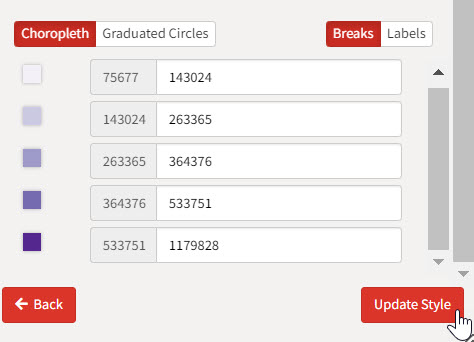

Toggle between Breaks and Labels to adjust the segments on your map accordingly. Customizing the names of the segments will be reflected in the legend.


Click Update Style after making any changes to the map.

8. Close the editor by clicking 'x.'

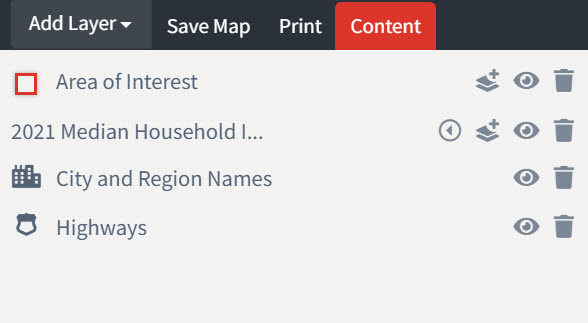

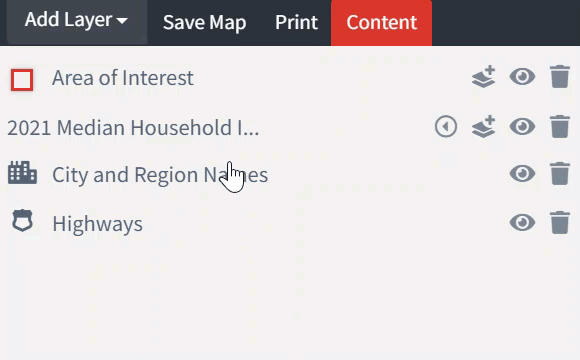

9. The Content pane loads, allowing you to see your map layers.


10. A workflow drives each layer. You can rearrange layers by dragging them up and down and projecting the layers onto your map accordingly.

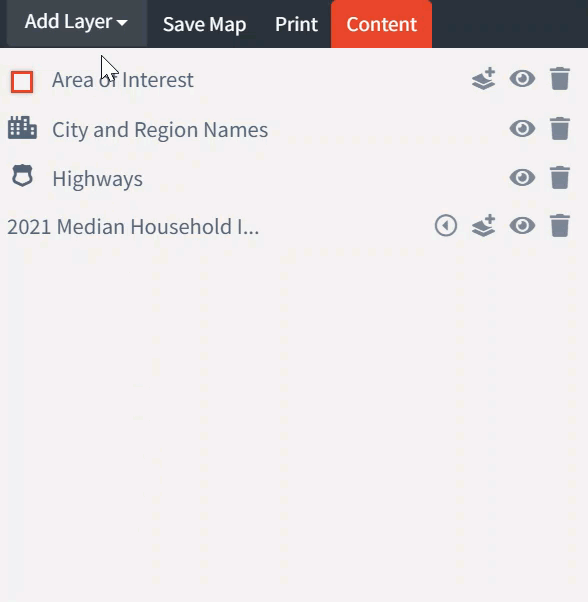

11. To open the style editor again or add additional layers to the map, use the Add Layer dropdown menu.

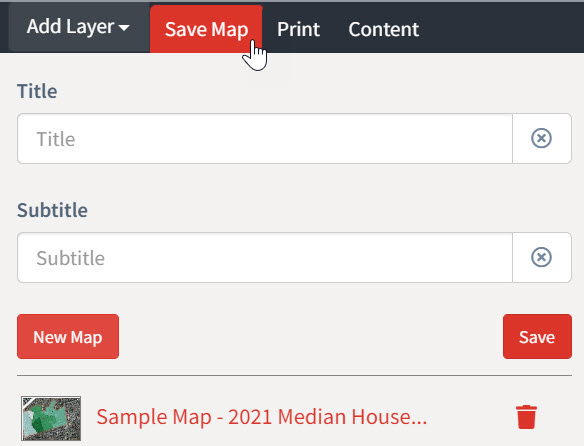

12. Navigate to the Save Map tab and add a Title and Subtitle. Once complete, click Save.

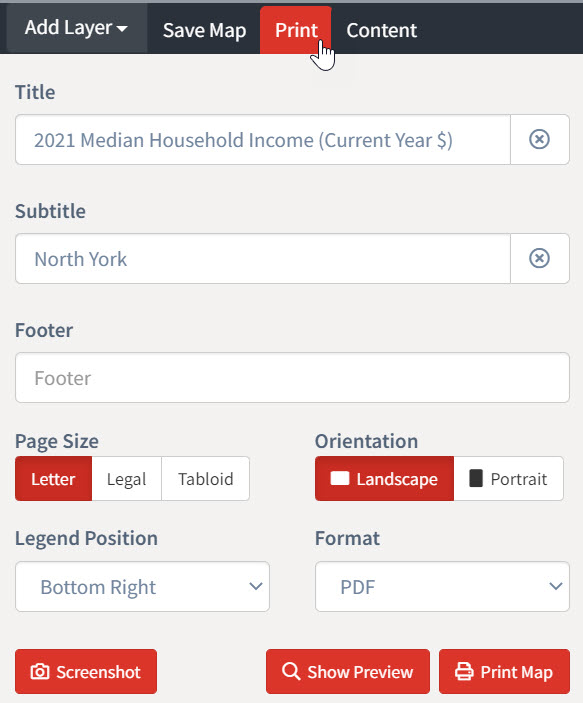

13. Navigate to the Print tab to export your map to a pdf file. Additional customization options are available.


14. Click Print Map. A notification will appear in the bottom right corner.


Once the map has been submitted to SPOTLIGHT, a notification will appear on the results tab.


View the map on the Results page.

________________________________________________________________________________________________________________

The Mapping Toolbar in SPOTLIGHT

There are seven tools available through the Mapping Toolbar in SPOTLIGHT; they are defined below.


     1                 2                 3                  4                 5                 6               7

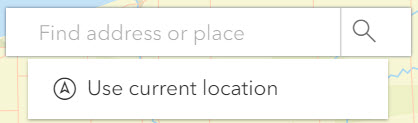

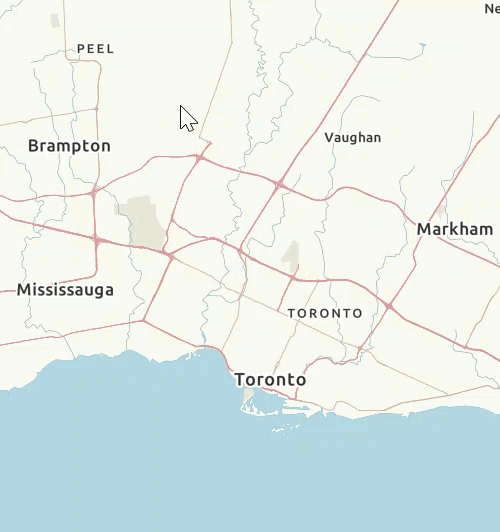

1. Search Map: This allows you to search for an address or place on the map. You can also use your current location to pan the map accordingly.

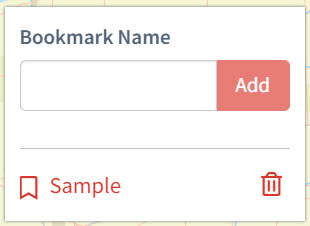

2. Bookmark: This allows you to save a specific map view to refer to at a later time.


Note: Bookmarks are saved to your browser. If you need to clear your cache for whatever reason, they will be lost.

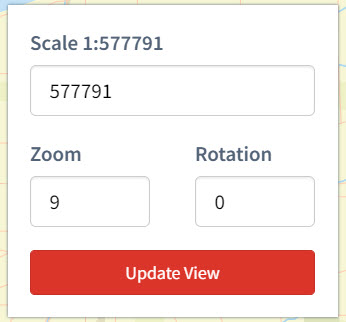

3. Scale/Zoom/Rotation: This allows you to adjust the proportions of the mapping interface.


Note: Right-clicking a point in the map will allow you to rotate your map.

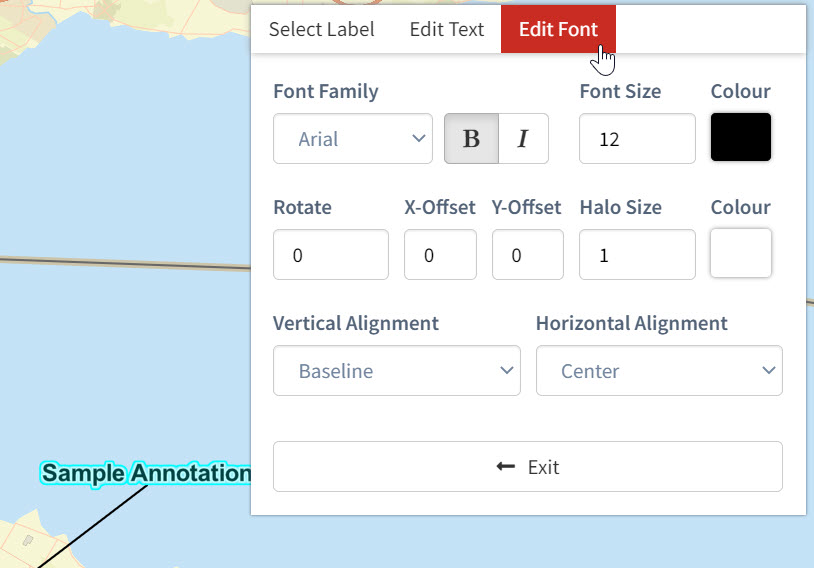

4. Annotations: You can add custom text to your map. Text can be further edited and adjusted in the Edit Text and Edit Font tabs.

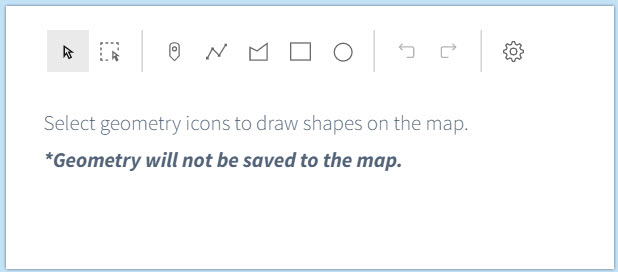

5. Draw: This allows you to add shapes, lines, symbols, images, and icons to the map.


6. Measurement Tools: This allows you to measure custom areas on your map by Distance or Area. Single-click to create a new side, double-click to complete the measurement. Click the Unit drop-down option to change the unit of measure.

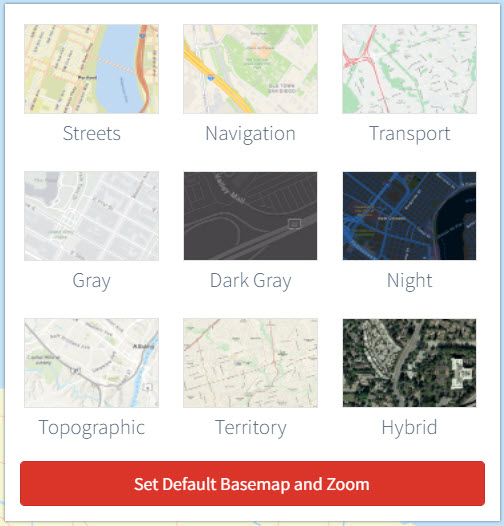

7. Basemap: You can choose from one of the nine map display options.
